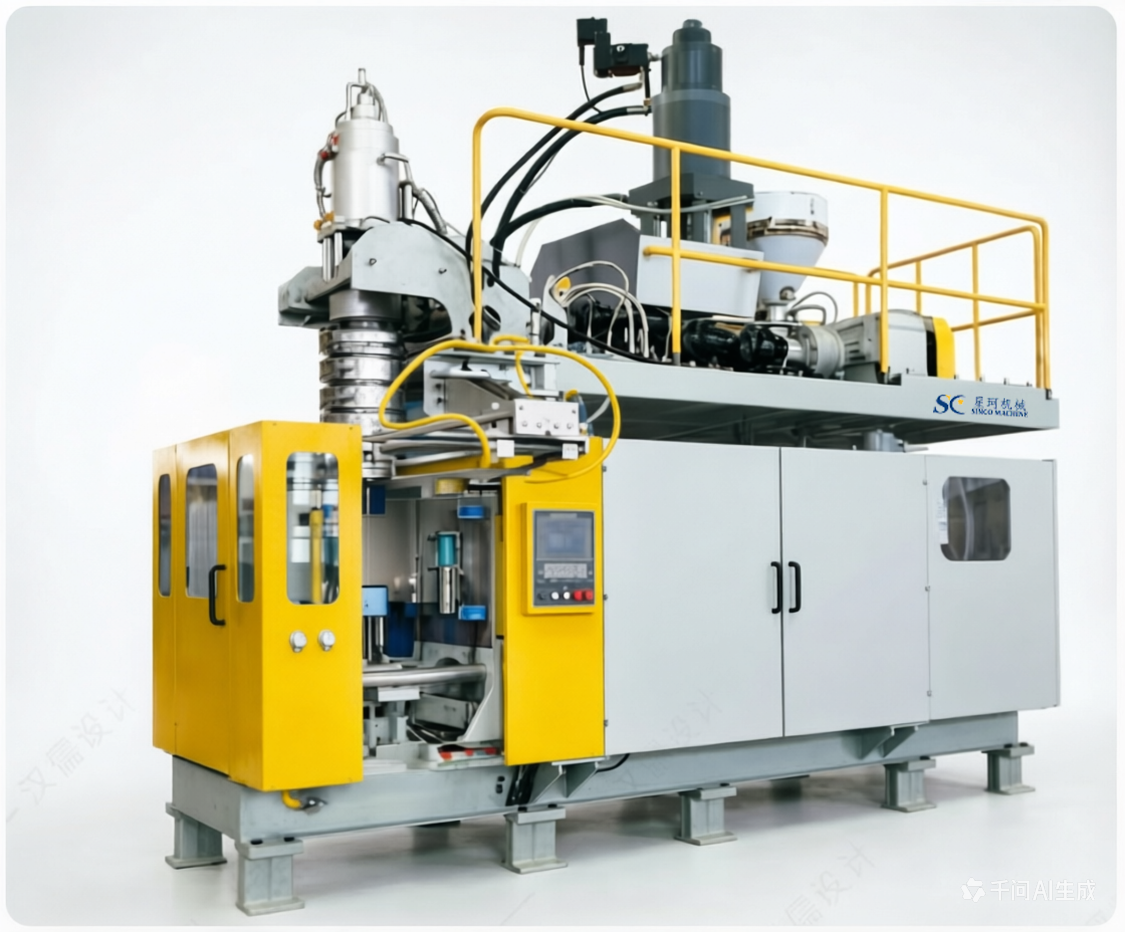

HDPE Blow Moulding Machine for middle size bottles or container SC-2S5L
- . Suitable Bottle Size: 1liter to 5 liter
- .Suitable Bottle Neck: 18–100mm
- . Production Capacity: 300-1,000BPH
HDPE Blow Moulding Machine
- Reasonable Design
- High Output
- Run Smoothly
- High Stability
- Power Saving
- Easy Operation
- Servo Driving
- Full After Sales Support
- Competitive Price
- Technical Parameters
- Description
- Video
| model no. | Unit | SC-2S5L |
| max.product volume | L | 5 |
| Dry cycle | pc/h | 600*2 |
| screw diameter | mm | 70 |
| screw L/D ratio | L/D | 24-26 |
| screw motor power | kw | 22 |
| screw heating capacity | kw | 4.7 |
| no.of heating zone | zone | 3 |
| output of HDPE | kg/h | 70-85 |
| oil pump drive power | kw | 11 |
| clamping force | kn | 100 |
| mold stroke | mm | 200-500 |
| size of mould(W*H) | mm | 370*400 |
| mould thickness | mm | 180-290 |
| max.die diameter | mm | 160 |
| die heat capacity | kw | 7-11 |
| blowing pressure | mpa | 0.7 |
| blowing air volume | M³/Min | 0.5 |
| cooling water pressure | mpa | 0.3 |
| water consumption | L/Min | 80 |
| weight of machine | ton | 6.5 |
| size of machine(L*W*H) | m | 3.4*2.3*2.4 |
HDPE Blow Moulding Machine for middle size bottles or container SC-2S5L
It’s best choise for bottle neck: 18–100mm.It can be used for your production of chemical barrel, toolbox, cosmetic bottle, detergent bottle, engine oil and lubrication container, and also drink bottle, amusement devices and transport facilities.
Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
Sinco HDPE Blow Moulding Machine
Sinco HDPE Blow Moulding Machine which also named extrusion moulding machine from 2000, our machine has the function of extrusion blowing machine for your produce PE,PP, ABS material products. It can be used for your production of chemical barrel, toolbox, cosmetic bottle, detergent bottle, engine oil and lubrication container, and also drink bottle, amusement devices and transport facilities.
